GEYER Electronics - Quartz Crystal

SMD-version






part no.

12.62000

model

KX – 2T

frequency

48.0 MHz

mode

fundamental

operating temperature

-30° ~ +85°C

frequency tolerance at +25°C

±10 ppm

temperature tolerance at -30° ~ +85°C

±15 ppm

load capacitance CL

6 pF standard

series resistance R1 (ESR) max.

60 Ohm

aging at +25°C (first year) max.

±2 ppm

shunt capacitance C0 max.

1.0 pF

drive level max.

10 µW

contents of reel

1000



Dimension (mm):

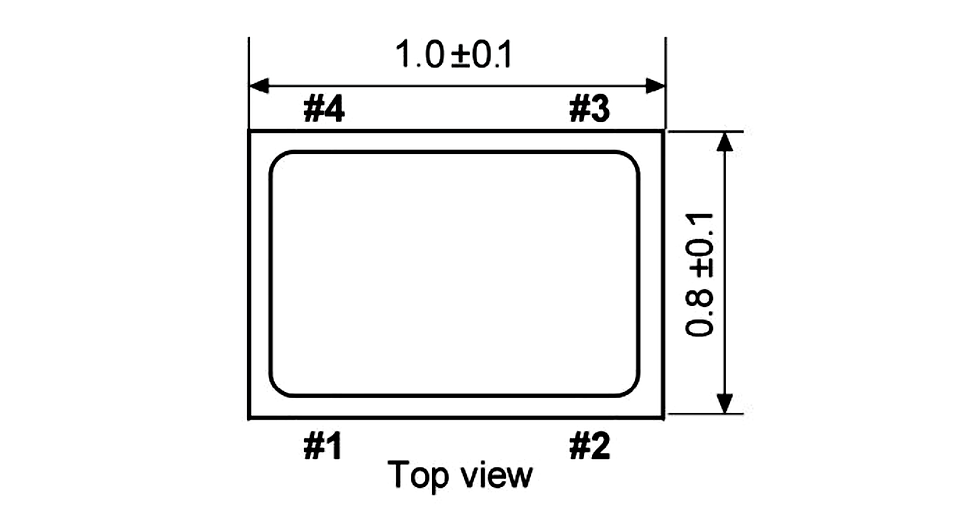

TOP VIEW


SIDE VIEW

BOTTOM VIEW



TOP VIEW CONNECTIONS




Suggested soldering pad:


Reflow soldering condition:


Tape specification:
